The QuickGene Mini 8L is a compact device designed for large volume samples. High-yields of DNA in a single run.
The small, light weight QuickGene-Mini8L takes up minimal space on the lab bench and even in the clean bench. And it can be used for DNA isolation from large volume samples (ex. 2 ml of whole blood, 100 mg of mouse liver) and allows to get high-yield of DNA at a single run.
Whole blood, concentrated blood, plasma, serum, buffycoat, saliva, animal tissue, plants, insects, fish, virus, swab, cultured cell, bacteria, food etc.
DNA isolation from large volume sample
QuickGene-Mini8L can be used for DNA isolation from large volume samples and allows high yields of DNA at a single run.
(eg 2 ml of whole blood, 5 mg of mouse liver)

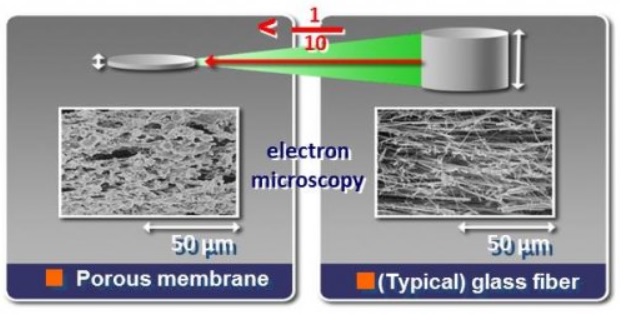

Revolutionary porous membrane
The QuickGene-Mini8L uses patented porous membrane less than 100 μm thick. Depending on the outstanding adsorption/desorption performances of the membrane, high-purity nucleic acid can be easily obtained in high yield at low pressure. The ultra thin membrane enables nucleic acid isolation in shorter time than when compared to glass fiber membranes.
QuickGene-Mini8L can be used to isolate high-yield, high-purity and long DNA fragments of maximum 90 kbp length. The isolated DNA can be directly applied to PCR, RT-PCR, NGS analysis, DNA microarray, restriction enzyme digestion, southern blotting, etc.

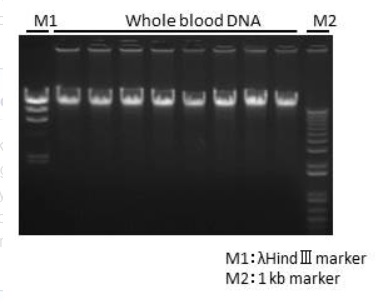

2ml of human whole blood sample (Leukocyte 5.2×103/μl)
DNA Yield & Purity
DNA Yield (μg) 64.41
Purity (260/280) 1.90
Purity (260/230) 1.98
Using the optional parts, the device can also be applied for high-throughput nucleic acid isolation from small volume samples using multi-channel pipettes.
(eg 200 μl of whole blood/5 mg of mouse liver, max. 48 sample)
- Cat # DB-L: DNA Whole Blood Kit L Reagents, cartridges, waste tube 48 sample
- Cat # DT-L: DNA Tissue Kit L Reagents, cartridges, waste tube 48 sample
This product is for research use only. Not for use in humans or diagnostic purposes.
